444nm激光器

请选择规格

总计：0元

444m激光在激光显示,生物医疗,海洋探测等方面都有广泛的应用,本文利用LD侧面泵浦Nd∶YAG并通过声光调Q产生1319nm脉冲激光,用Ⅰ类相位匹配LBO腔内倍频获得660nm,1319n...在与660nm经I类相匹配LBO和频产生444nm激光。

技术参数

Wavelength	444nm+/-2 nm
Beam Height	25mm
Beam Size	5x5mm
Polarization	10:1 (Linear)
Beam Divergence(full angle)	1.2mrad
Power Stability	<3% per 4 hrs
Warm Up Time	<1 minute
MTTF	10,000 hrs

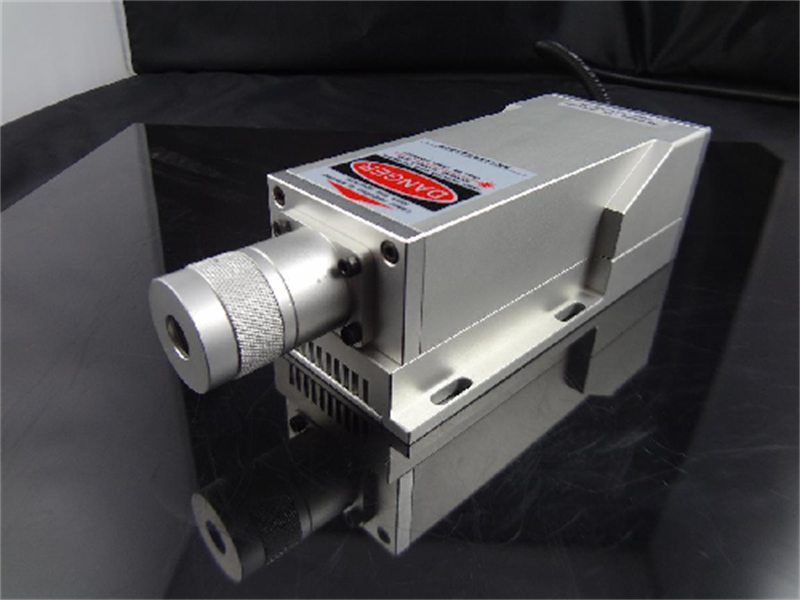

Laser head dimensions	120(L)x56(W)x42(H)mm3

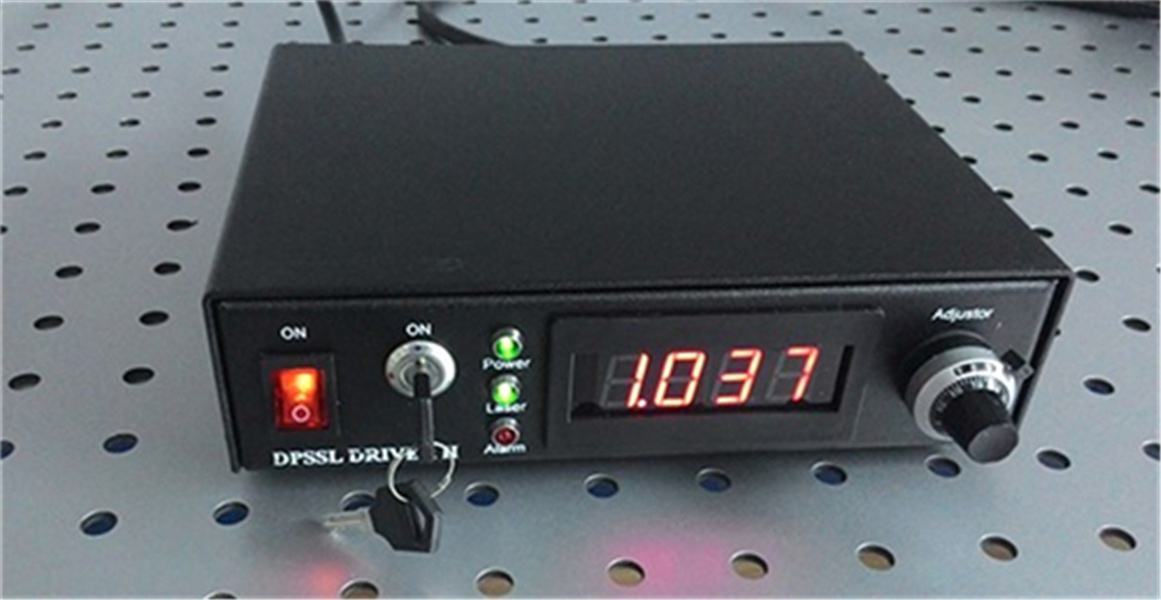

Power Supply	A. OEM type LSR-PS-I: 100(L)x58(W)x32(H)mm3 AC/DC PSU: 85~265V 50/60Hz input
	B. Lab type LASER 104(W)x128(D)x89(H)mm3 85~265V 50/60Hz input
	C. Adjustable type LASER179(W)x148(D)x56(H)mm3 85~265V 50/60Hz input
Modulation	0~30khz Analog or TTL

选型指南
