785nm拉曼激光器

    请选择规格

  • 数量:
    库存量:99999 已售:0
  • 785nm拉曼激光器
    0
总计:0

NBET-D-785/1~450mW

INFRARED DIODE LASER MODULE AT785nmWith narrow spectral bandwidth, spectral purity and a high level of wavelength stability, NBET-D-785laser module is designed specially for Raman spectroscopy, which has integrated laser drivers andthermoelectric coolers together, its compact dimension and convenient functions make it optimalfor industrial and medical applications.

技术参数

Wavelength

785(+/-2) nm

Spatial Mode

multimode

Spectrum Width(FWHM)

<2nm

Output Power

2000mW

Operation Mode

CW or Modulation

Polarization

10:1

Pointing Stability

<0.05 mrad

Beam Size

6 mm

Beam Divergence

2.5 mrad

Power Stability*

<±3% per 2 hrs

Beam Height

25mm

Temperature Stabilizing

TEC

Warm Up Time

<5 minutes

Beam Quality (M2)

<2

Optimum Operating Temperature

20~30oc

Storage Temperature

10~50oC

MTTF**

10,000 hrs

Laser head dimensions

100(L)x40(W)x50(H)mm3

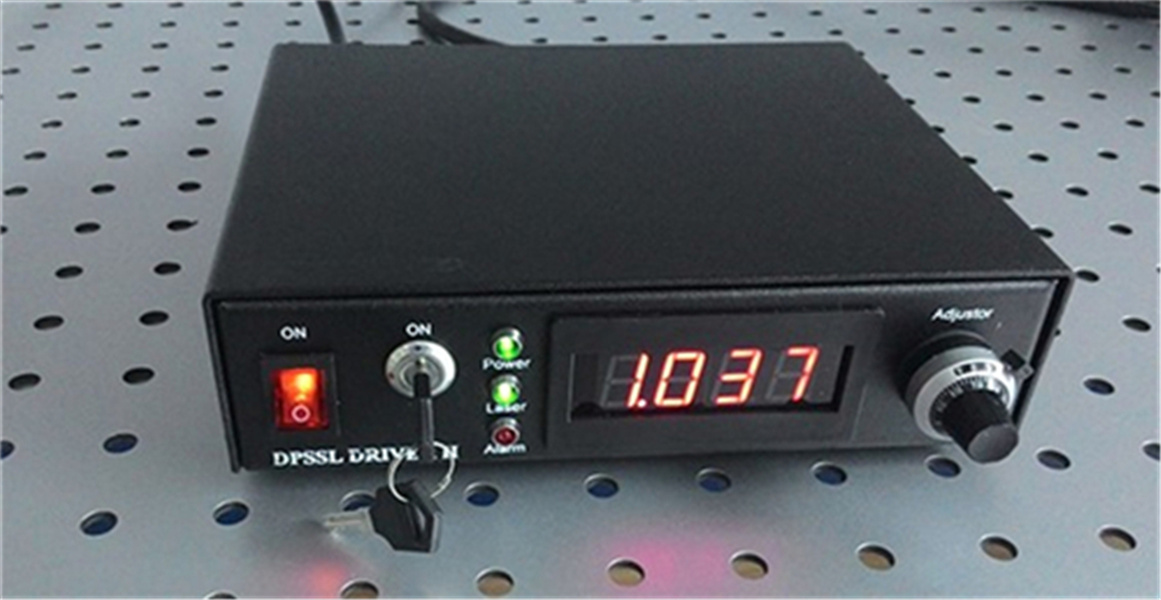

Power Supply

A. OEM type

LSR-PS-I: 100(L)x58(W)x32(H)mm3

AC/DC PSU: 85~265V 50/60Hz input

B. Lab type

LSR-PS-IIS: 104(W)x128(D)x89(H)mm3

 85~265V 50/60Hz input

C. Lab Adjustable type

LSR-PS-IIS: 179(W)x148(D)x56(H)mm3

85~265V 50/60Hz input

Modulation

0~30khz Analog or TTL

选型指南

NBET-FN-360nm

360nm半导体激光器,数显可调。

NBET -III-400/405/410/415nm

400nm半导体激光器,数显可调。

NBET-III-532nm

532nm半导体激光器,数显可调。

NBET-F-532nm

532nm半导体激光器,数显可调。

NBET-FN-532nm

532nm半导体激光器,数显可调。

NBET-D-785nm

785nm半导体激光器,数显可调。

NBET-III-1064nm

1064nm半导体激光器,数显可调。
